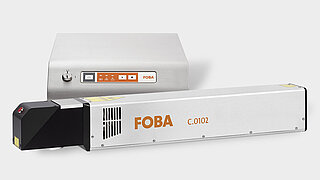

CO2 Laser Marker C.0102/C.0302/ C.0602

Reliable, field-proven CO2 laser marking technology combined with unrivalled flexibility

Send Request


Wavelengths, scan head aperture, marking head position, IP rating, power and much more can be configured to suit your application needs. Flexibility is built-in. With print speeds up to 2,000 characters/sec. and line speeds up to 900 m/min., these marking lasers address both simple and complex code requirements on a range of substrates including paperboard, glass, painted metals and many plastic materials. This flexibility makes the C-Series lasers well suited for laser marking applications in various industries: for automotive parts, electronic components, plastic parts, cables, and many more. Marking your products on-the-fly or when stationary, with simple date codes or complex graphics, the C.0102 and C.0302 offer cost effective solutions to your part marking challenges.

The C.0102 10-Watt offers all the performance features the C.0302 30-Watt marking laser provides, but with a power source better matched for moderate line speed applications or those at rest. The 30-Watt C.0302 is perfect for higher speed mark-on-the-fly applications (of up to 150,000 products/hour) or more demanding materials such as many plastics.


Simple usability

Most flexible integration solution with 32 standard beam delivery options; Quick set up and easy redeployment via detachable umbilical cable and simple-to-use accessory connections; 4 interface options plus a choice of networking communications to match your preferred workflow



Air-cooled laser virtually eliminates maintenance intervals; High-resolution marking head for high quality, permanent and consistently crisp codes that assure product traceability and tamper-proofing.


Built-in productivity

A variety of mark window options and high-speed marking heads allow for a throughput increase of up to 67 %.



5 Show all images
10 Show all images
6 Show all images

Technical specifications



Marking features
Marking heads and focusing
  • 6 mm head with 5 focus lenses (f =64/95/127/190/254 mm)
  • 10/12/15 mm heads (optional) with various focus lenses (10/12 mm: f =63.5/85/100/150/200/300/351/400 mm, 15 mm: f = 100/150/200/300/351/400/500/600 mm)
Marking fields (mm2) Depends on marking head and focus lens
  • 6mm head: from (AxB) 44.7 x 44.7 to 177.3 x 177.3
  • 10mm head: from (AxB) 30.8 x 38.2 to 294.7 x 406.9
  • 12mm head: from (AxB) 29.1 x 36.2 to 294.7 x 350.8
  • 15mm head: from (AxB) 66.7 x 100.1 to 439.8 x 601.0
Type Sealed CO2 laser, power class 10/30/60-Watt, Wavelengths 9.3 µm, 10.2 µm and 10.6 µm
Laser class 4 (as per IEC 60825-1)


User interfaces

Handheld controller
PC Software FOBA Draw, MarkUS 2.12 (as of Q2.2018)
Smart Graph Com ActiveX interface
  • Ethernet (TCP/IP), optional RS232
  • Inputs for encoders and product detector triggers
  • inputs/outputs for start/stop signals, machine/operator interlocks, alarm outputs; additional I/Os available
  • Machine safety: Optional safety module for Performance Level d (PL d) in accordance with EN 13849-1
  • Line integration: Direct integration via scripting interface
  • Beam delivery: 32 standard beam delivery options (beam extension unit/ turning unit)
  • Quick connect: Detachable umbilical for simple integration; available in 3 lengths
Electrical requirements L/N/PE 100 – 240 VAC, 50/60 Hz
Power consumption C.0102: max. 0.4 kW, C.0302: max. 0.7 kW, C.0602: max. 1,15 kW
IP rating
  • Marking unit: IP54 (optional IP65)
  • Supply unit: IP54 (optional IP65)
Cooling Air-cooled
Temp./Humidity 5-40°C/ 10-90%, non-condensing
Weight Marking unit C.0102 (IP54) ~13 kg
Marking unit C.0302 (IP54) ~19 kg
Marking unit C.0602 (IP54) ~27kg
Supply unit (IP54) approx. ~12 kg
Applicable Certifications CE, TÜV, NRTL/FCC; RoHS compliant
